Description

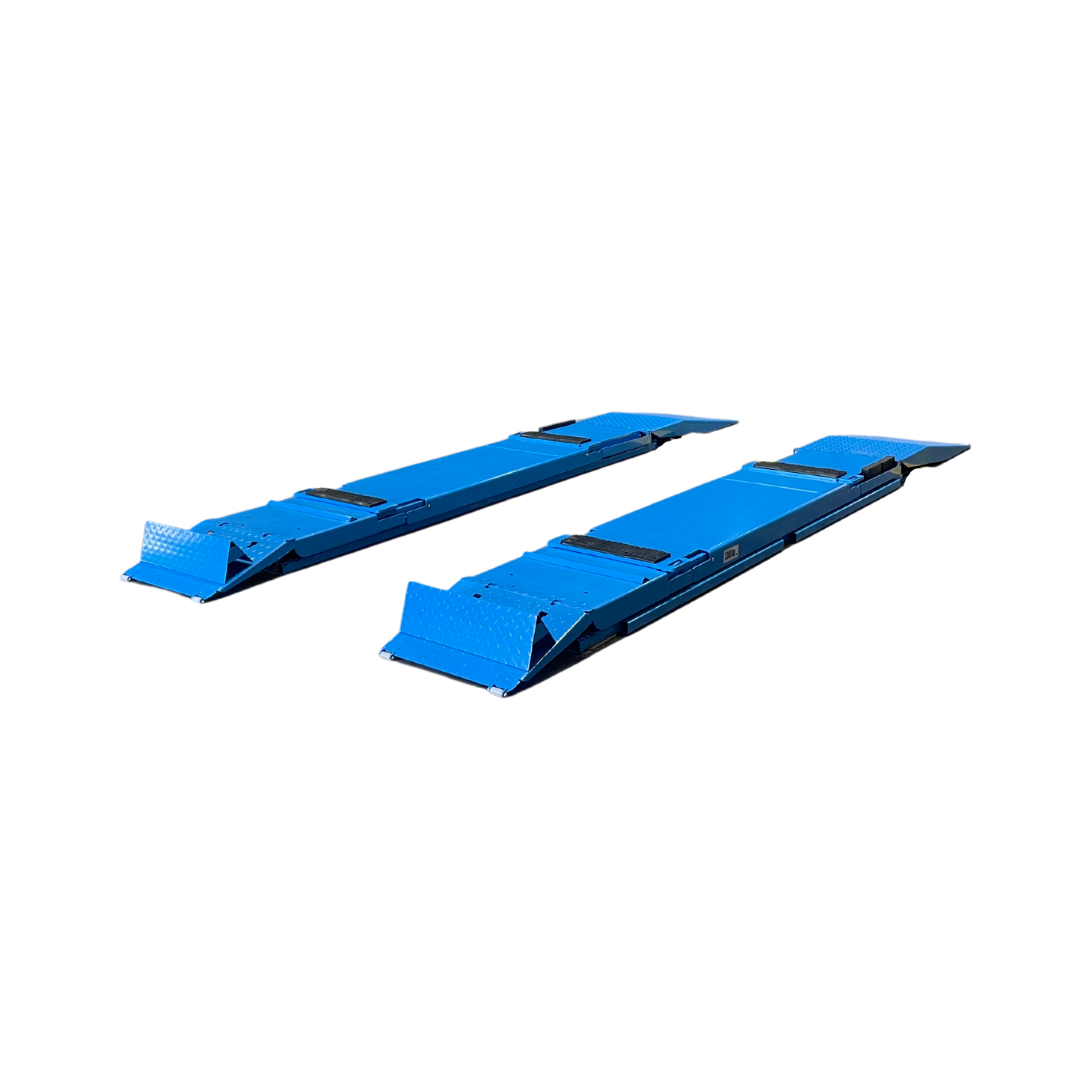

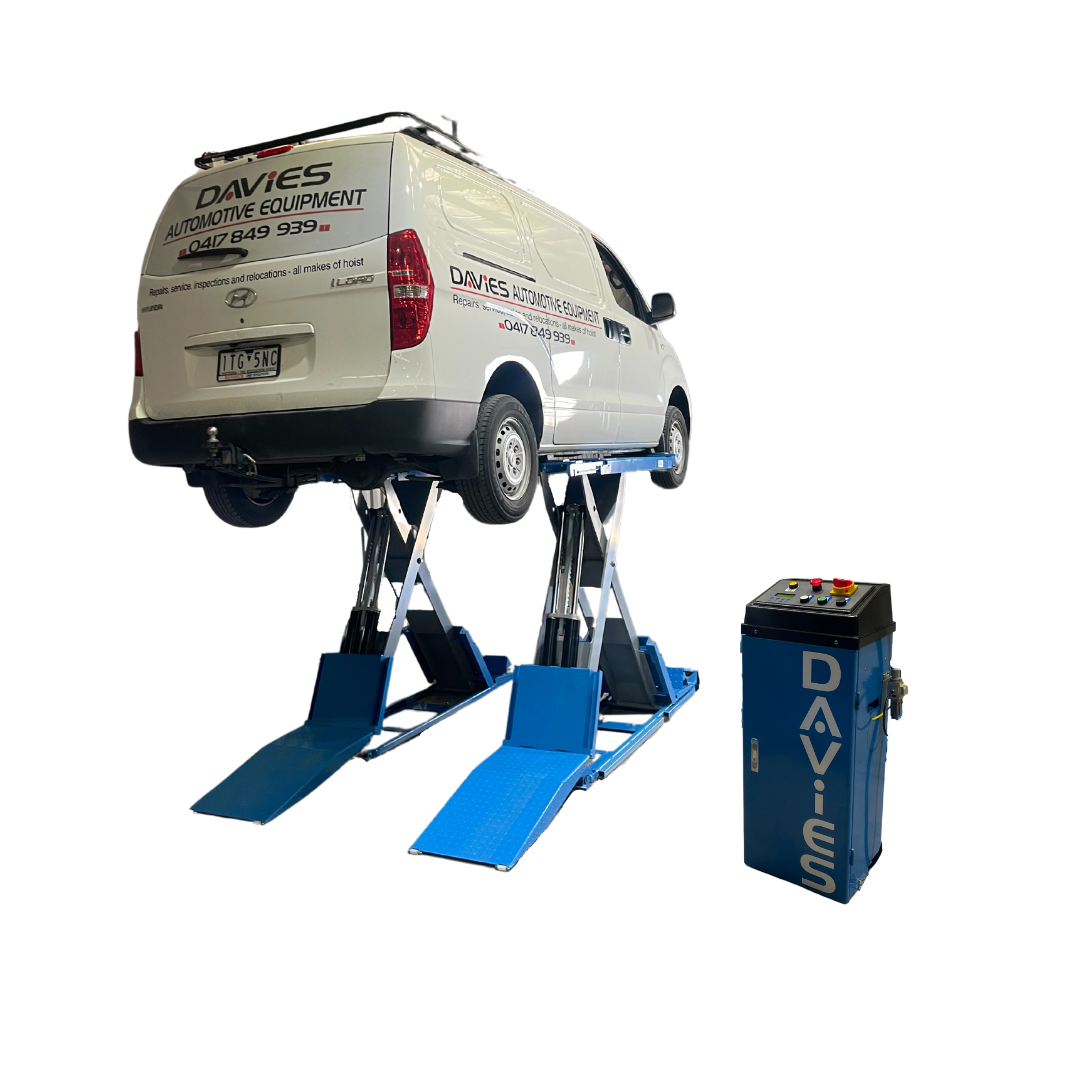

The Davies DA33S Full Rise Scissor Lift is a commercial-grade vehicle lift designed for workshops requiring reliable lifting performance and flexible installation options. With a 3,300 kg lifting capacity, it is suitable for passenger vehicles and light commercial applications, providing a practical solution for servicing, inspections, and quick workshop tasks.



Key Benefits

3,300 kg lifting capacity suitable for passenger vehicles and light commercial use

Twin lifting rams on each platform for balanced and stable lifting

Powerful and efficient 3-phase motor for reliable operation

Pneumatic safety lock release for convenient and safe operation

Compatible with both in-ground and above-ground installation

Powder-coated finish for durability and corrosion resistance



Features

Lifting capacity of 3,300 kg

Full-rise scissor lift design

Twin hydraulic lifting rams on each platform

Pneumatic safety lock release

3-phase electric motor

Heavy-duty powder-coated finish

Four rubber lift pads included

Suitable for above-ground or flush in-ground installation



Who This Hoist Is For

Ideal for:

  • Automotive workshops performing servicing and inspections
  • Service centres requiring stable lifting for passenger vehicles
  • Garages requiring flexible installation options

Not Recommended For

  • Vehicles exceeding the rated lifting capacity
  • Heavy commercial trucks
  • Workshops without appropriate floor load capacity



Model DA33S
Lifitng Capacity 3300KG
Power Supply 3ph/415V/50-60hz

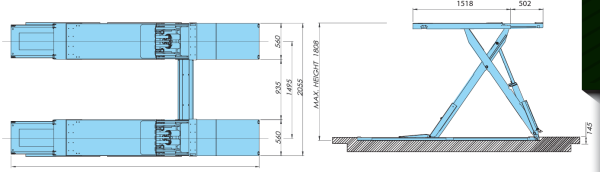

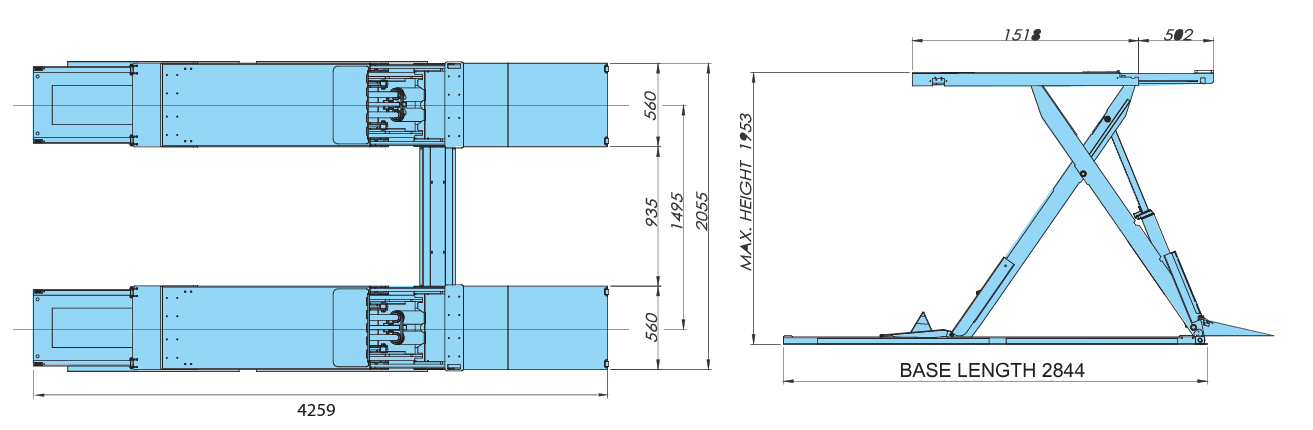

Max Lifting Height 1955mm (1808mm in-ground)
Min Height 145mm (0mm in-ground)
Overall Length 4298mm
Overall Width 2055mm
Lifting Time  45~55 sec
Lowering Time 50~65 sec
Net Weight  1050Kg
Portable No
Concrete Thickness Req. 120mm
Air Req. Yes
In Ground Option Yes





Warranty

  • For warranty purposes the intended use of this product is "Full Commercial Use"
  • 3 Years Warranty for intended use.
  • No warranty on consumable parts
  • Warranty is parts only

For more information see our warranty terms and conditions
