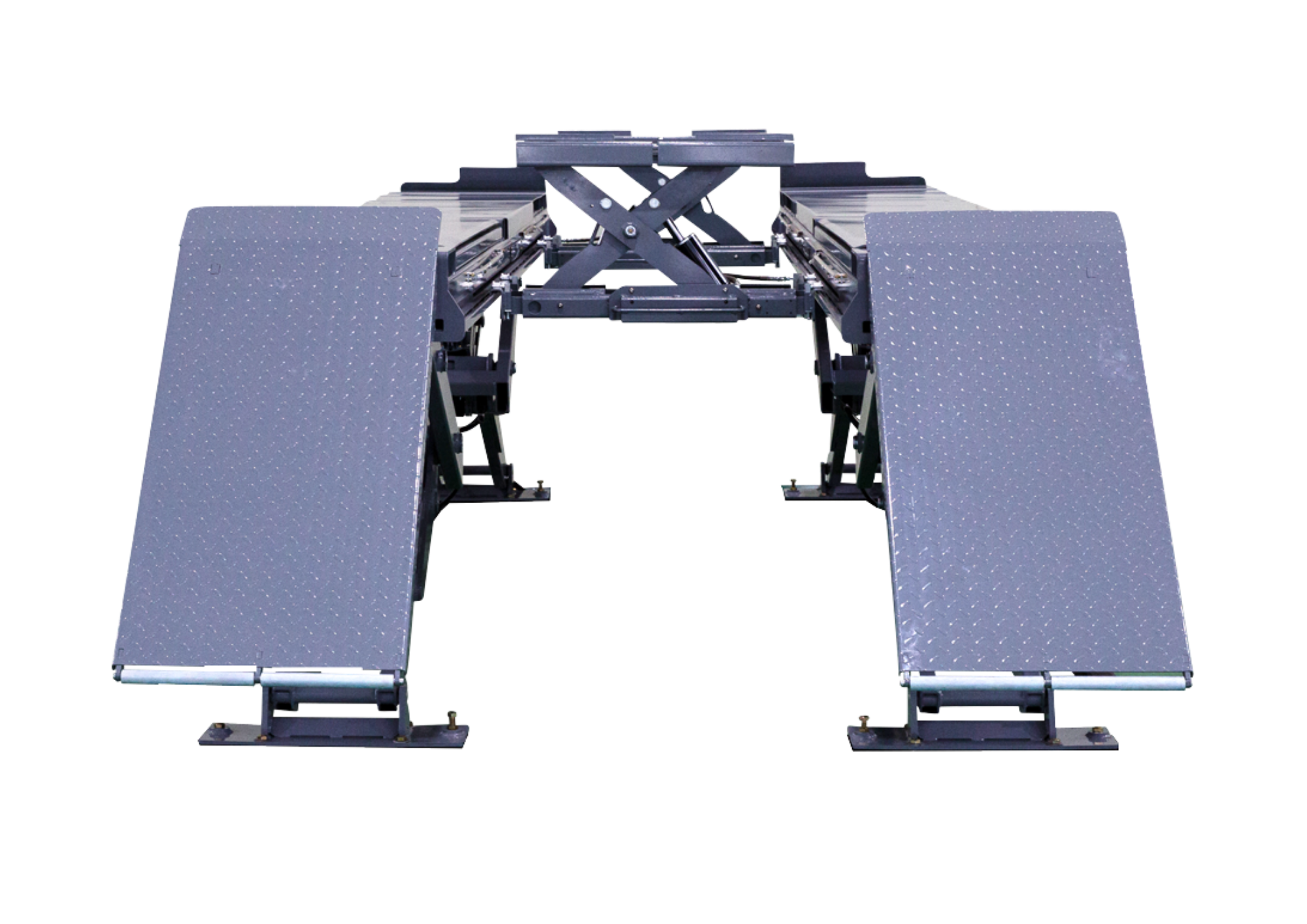

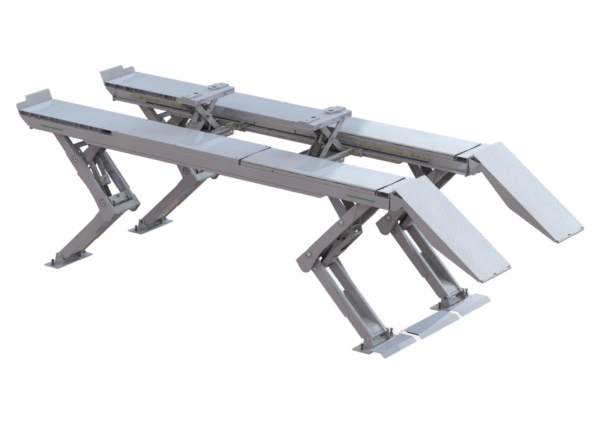

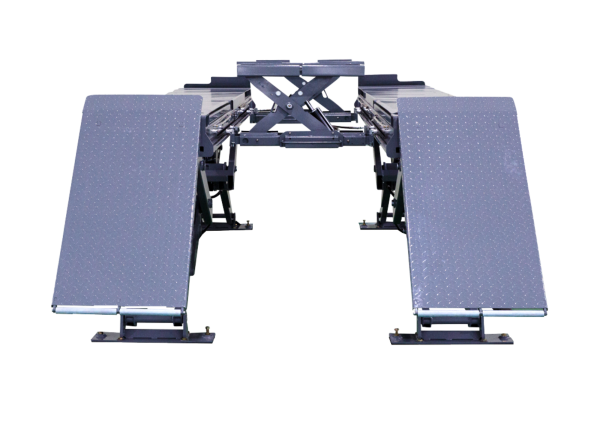

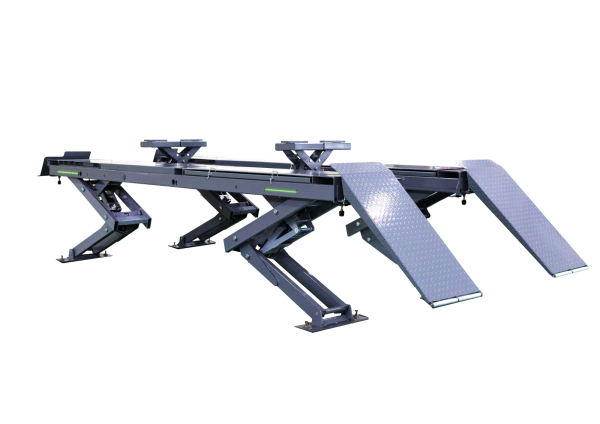

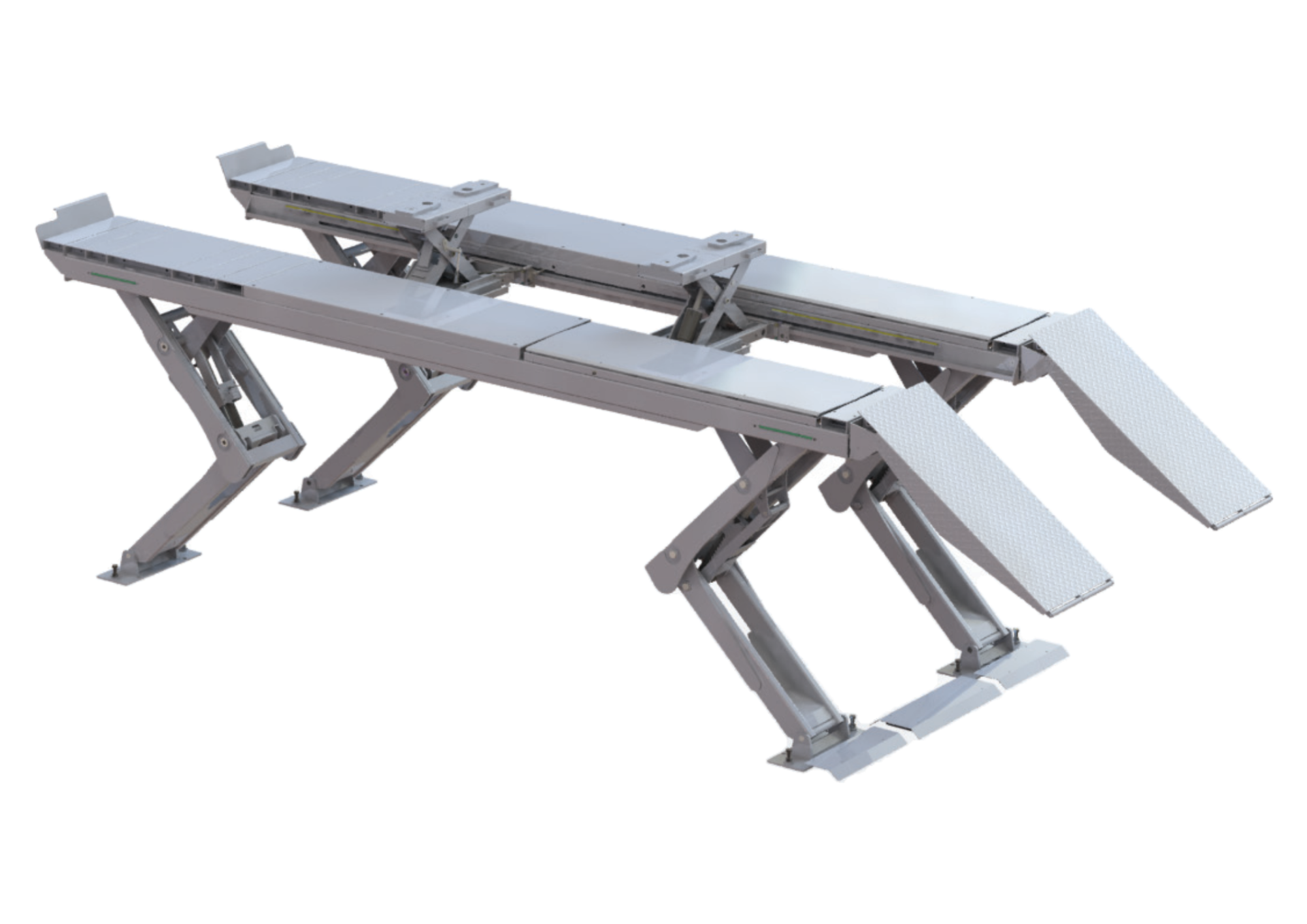

DA60Z Wheel Aligner Hoist

Shipping & Delivery Requirements
For all large products, including vehicle hoists, a forklift must be available onsite to unload the delivery.
These items cannot be delivered via tailgate service, and drivers are not permitted to unload without appropriate equipment.
Smaller items and general parts do not require a forklift, however shipping costs and delivery times will vary based on size and location.
If your order contains a hoist or any oversized item, please ensure you have the correct unloading equipment available at the delivery address.
Large items can be shipped to the nearest depot for collection if forklift is not available on site.
Categories: ,
Product Badge

Description

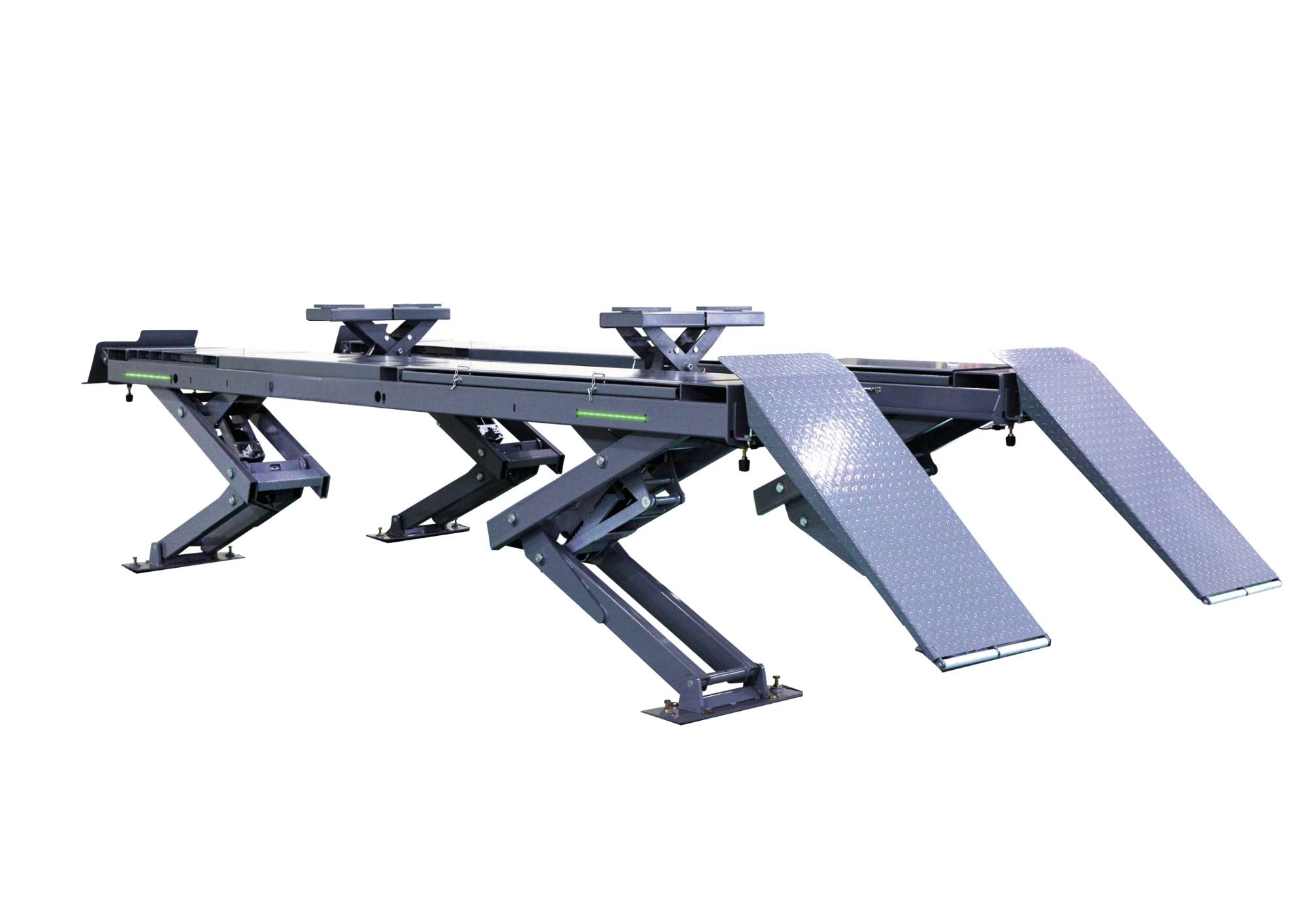

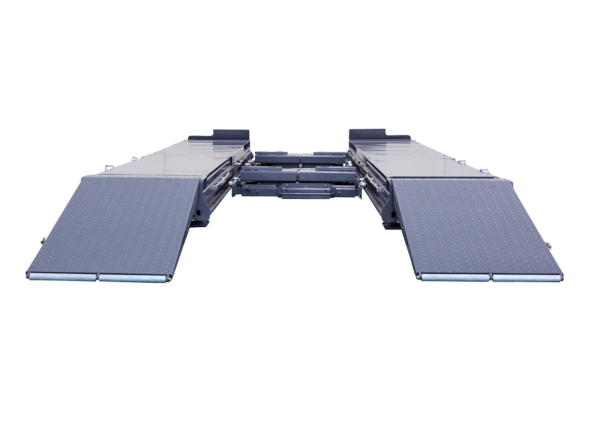

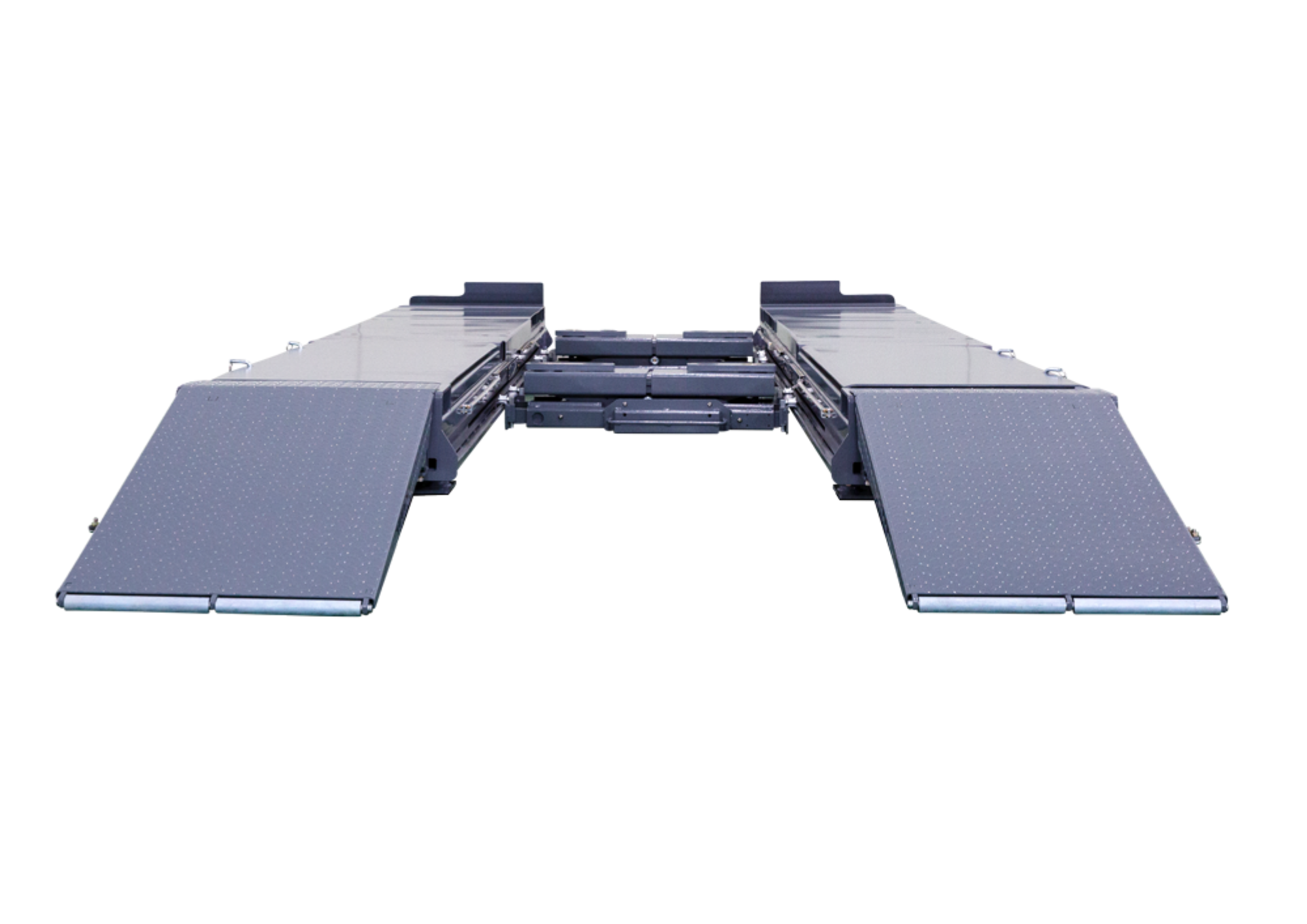

The Davies DA60Z knuckle lift Wheel Alignment Hoist is a high-capacity, professional-grade solution designed for precision alignment and efficient workshop operation. With a 6,000 kg lifting capacity, it is suitable for passenger vehicles, SUVs, and light commercial vehicles, offering advanced digital control, flexible access, and enhanced safety features.

Key Benefits

  • 6,000 kg lifting capacity for a wide range of vehicles
  • Precision digital sensor balancing system for level lifting
  • Spoiler tilt program for low-profile vehicles
  • Compatible with modern 3D and touchless alignment systems
  • No crossbeams between platforms for clear underbody access
  • Multi-directional 4-way drive-through design for improved workflow
  • LED under-platform work lights for better visibility



Features

  • Maximum lifting capacity of 6,000 kg
  • 4-post design with open platform access
  • Precision digital sensor balancing system
  • Spoiler tilt function
  • Push-button rolling jacks with LED status indicators
  • Electric/hydraulic jacking bridge
  • Adjustable front turntable recesses
  • Auto-locking side slip plates
  • Smart safety lock sensor system
  • Integrated LED work lights

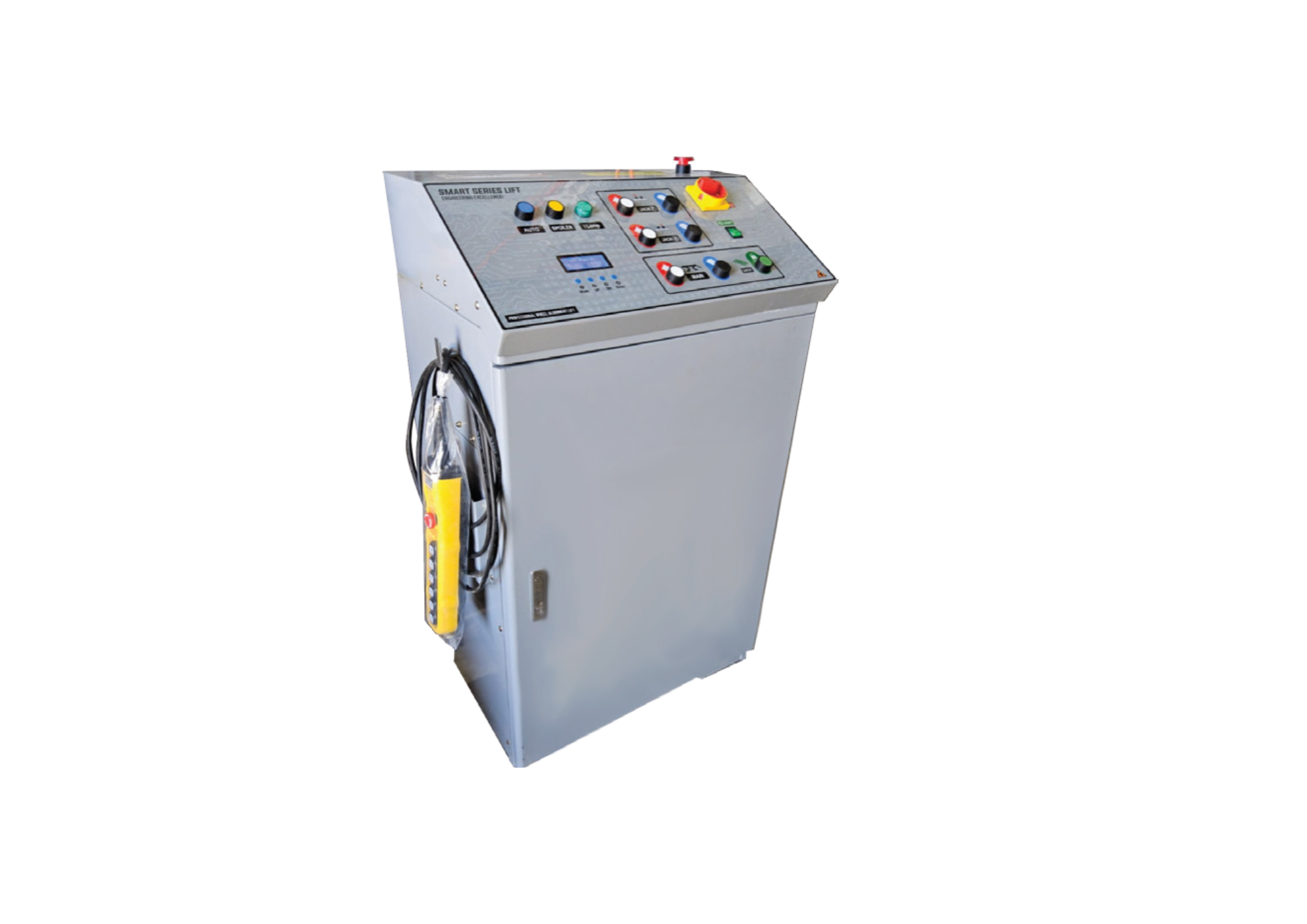

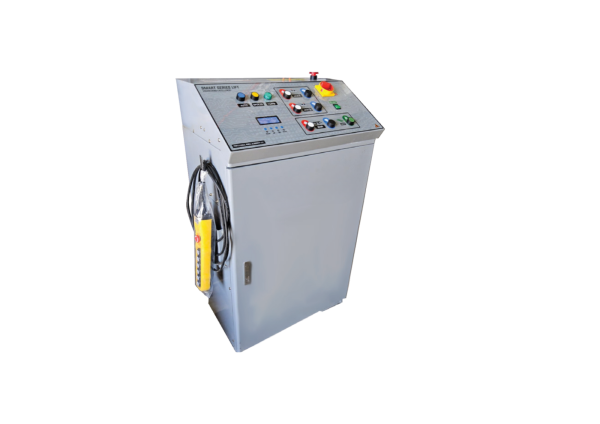

  • User-friendly control box
  • Adjustable turntable platform



Ideal for

  • Automotive workshops performing wheel alignment
  • Service centres requiring a high-capacity hoist
  • Dealerships servicing passenger and light commercial vehicles

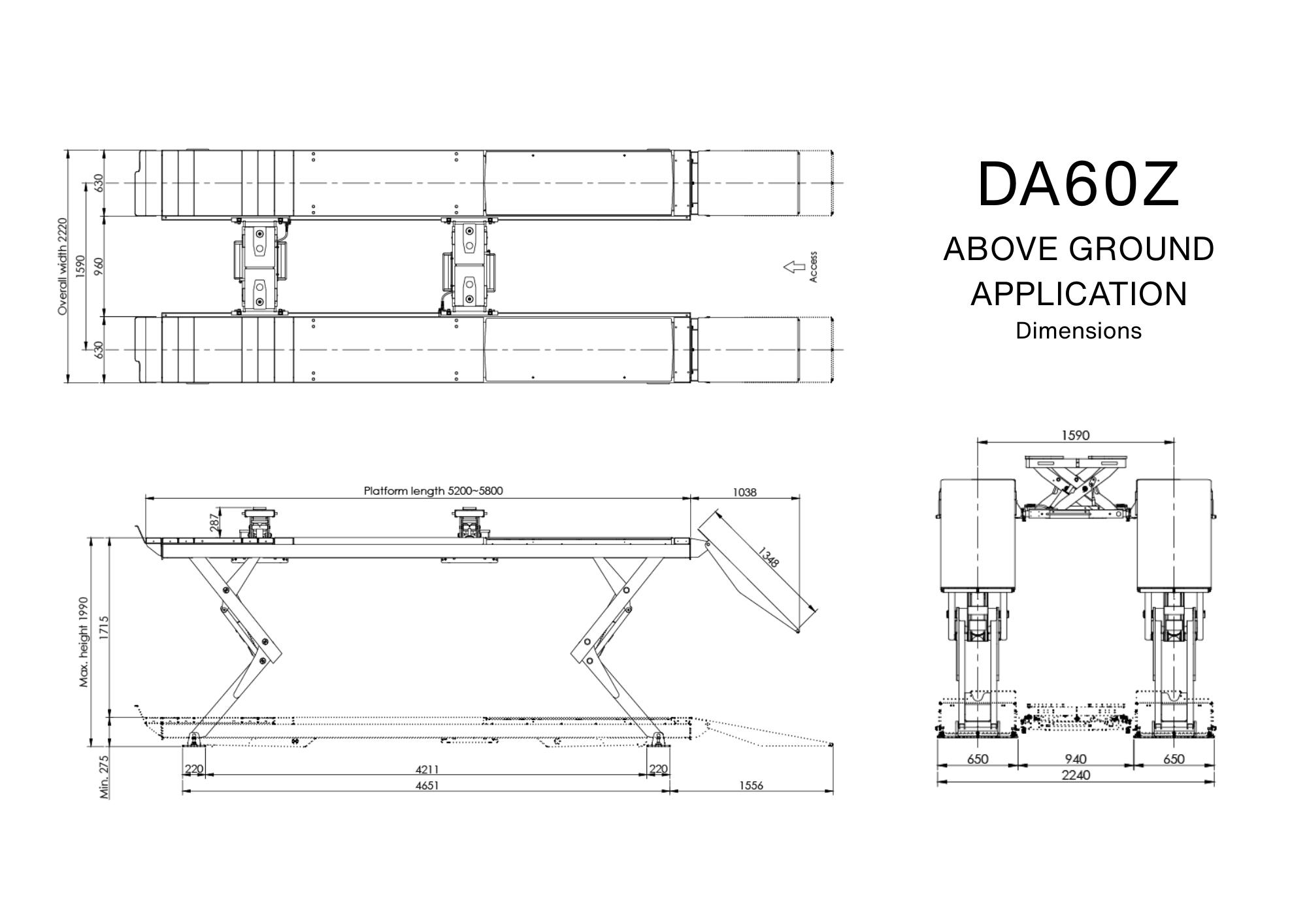

Model DA60Z
Lifitng Capacity 6000KG
Max Lifting Height 1,990mm
Min Height 275mm (0mm in-ground)
Overall Length 6207mm (inc. ramps)
Overall Width 2220mm
Lifting Time  40~50 sec
Hydraulic Pressure 260 bar (relief valve setting)
Air Pressure 0.6~0.8 Bar
Portable No
Concrete Thickness Req. 150mm

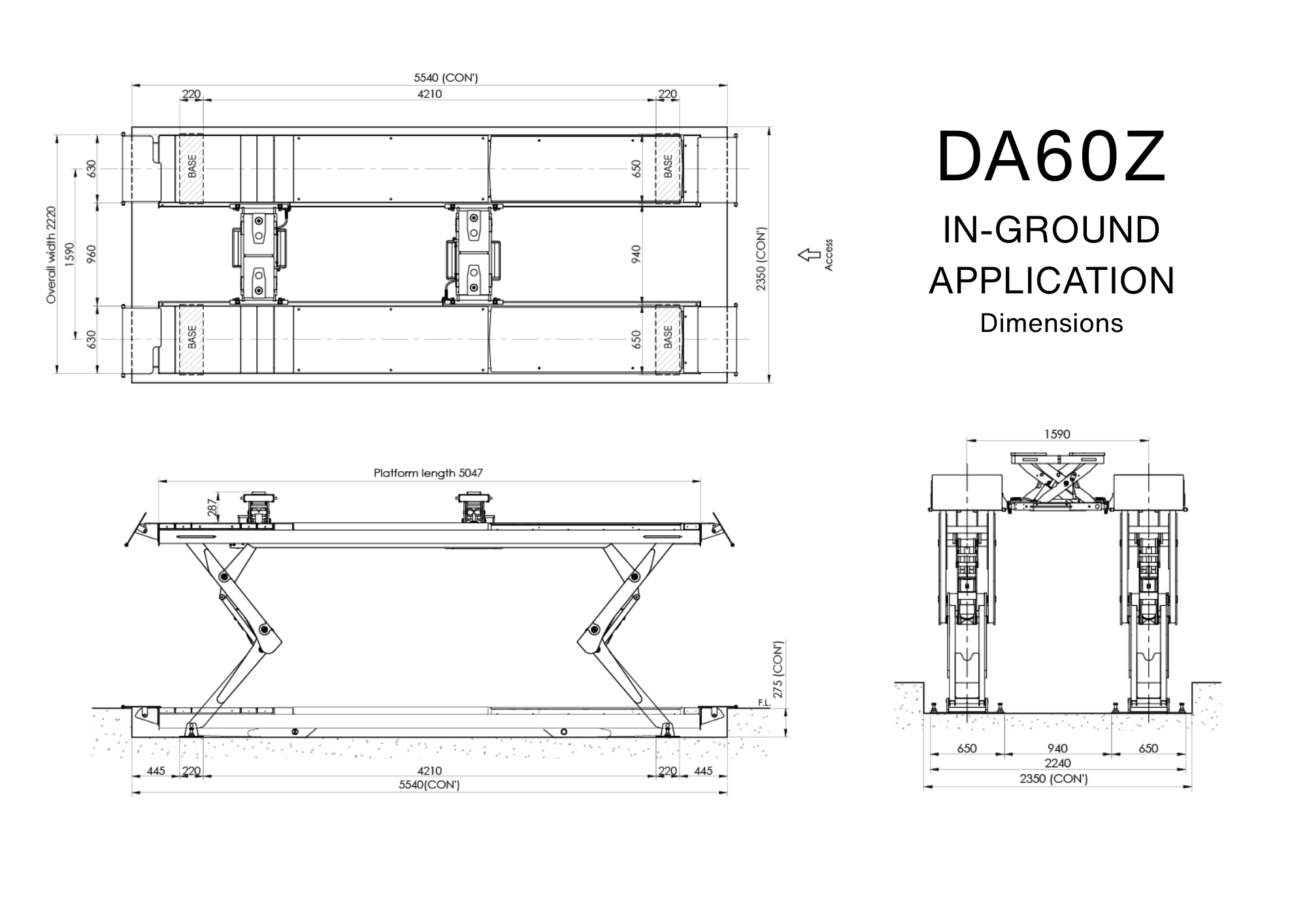

In Ground Option Yes


Power Supply 3PH*2HP*4P*380V*50Hz x 2

Warranty

  • For warranty purposes the intended use of this product is "Full commercial use"
  • 3 Years Warranty for intended use.
  • No warranty on consumable parts
  • Warranty is parts only

For more information see our warranty terms and conditions
