DAVIES SCISSOR PARKER

Shipping & Delivery Requirements
For all large products, including vehicle hoists, a forklift must be available onsite to unload the delivery.
These items cannot be delivered via tailgate service, and drivers are not permitted to unload without appropriate equipment.
Smaller items and general parts do not require a forklift, however shipping costs and delivery times will vary based on size and location.
If your order contains a hoist or any oversized item, please ensure you have the correct unloading equipment available at the delivery address.
Large items can be shipped to the nearest depot for collection if forklift is not available on site.

SKU: DAPSCL Categories: All Hoists, Car Storage Hoists, Products, Scissor Lifts

Description

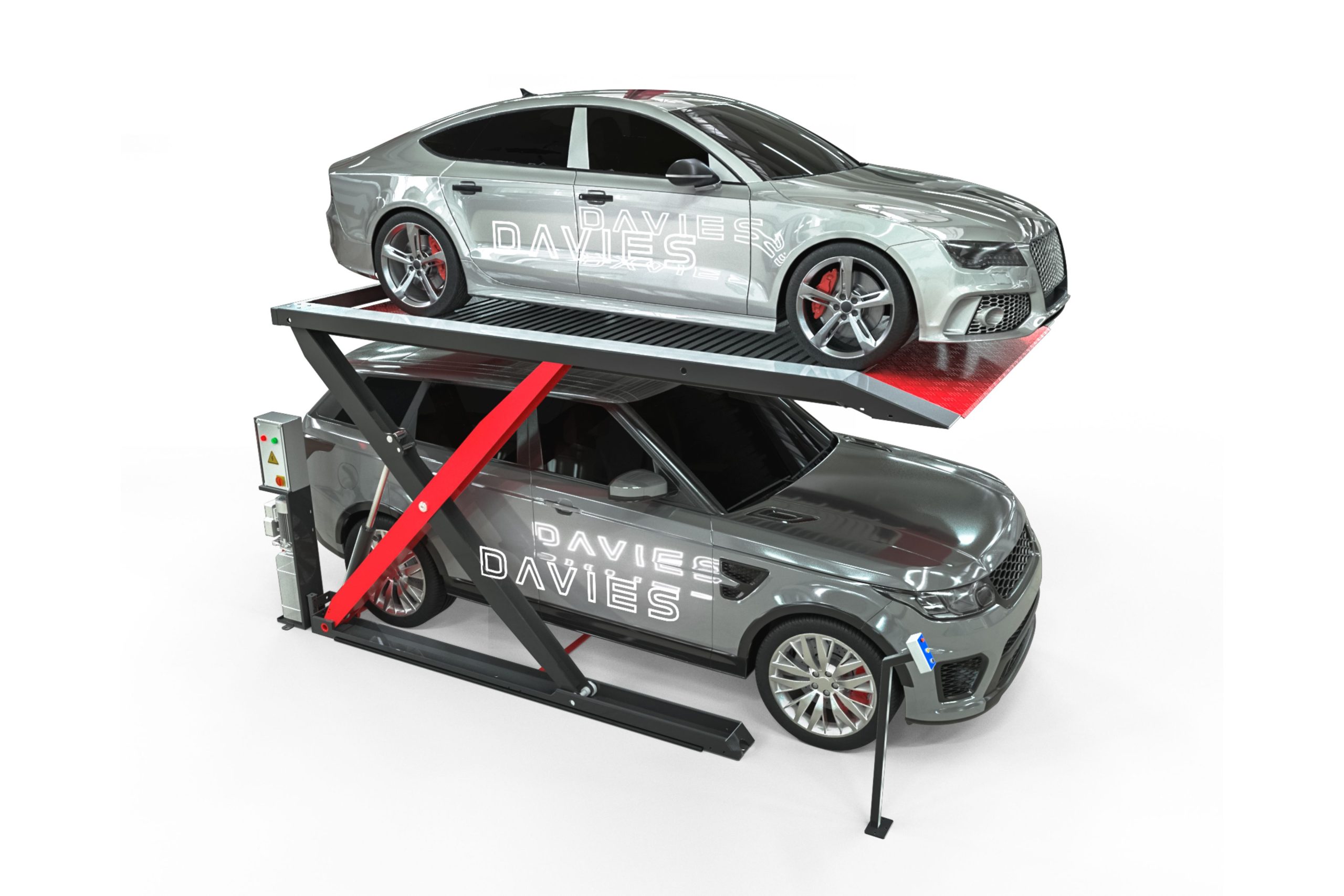

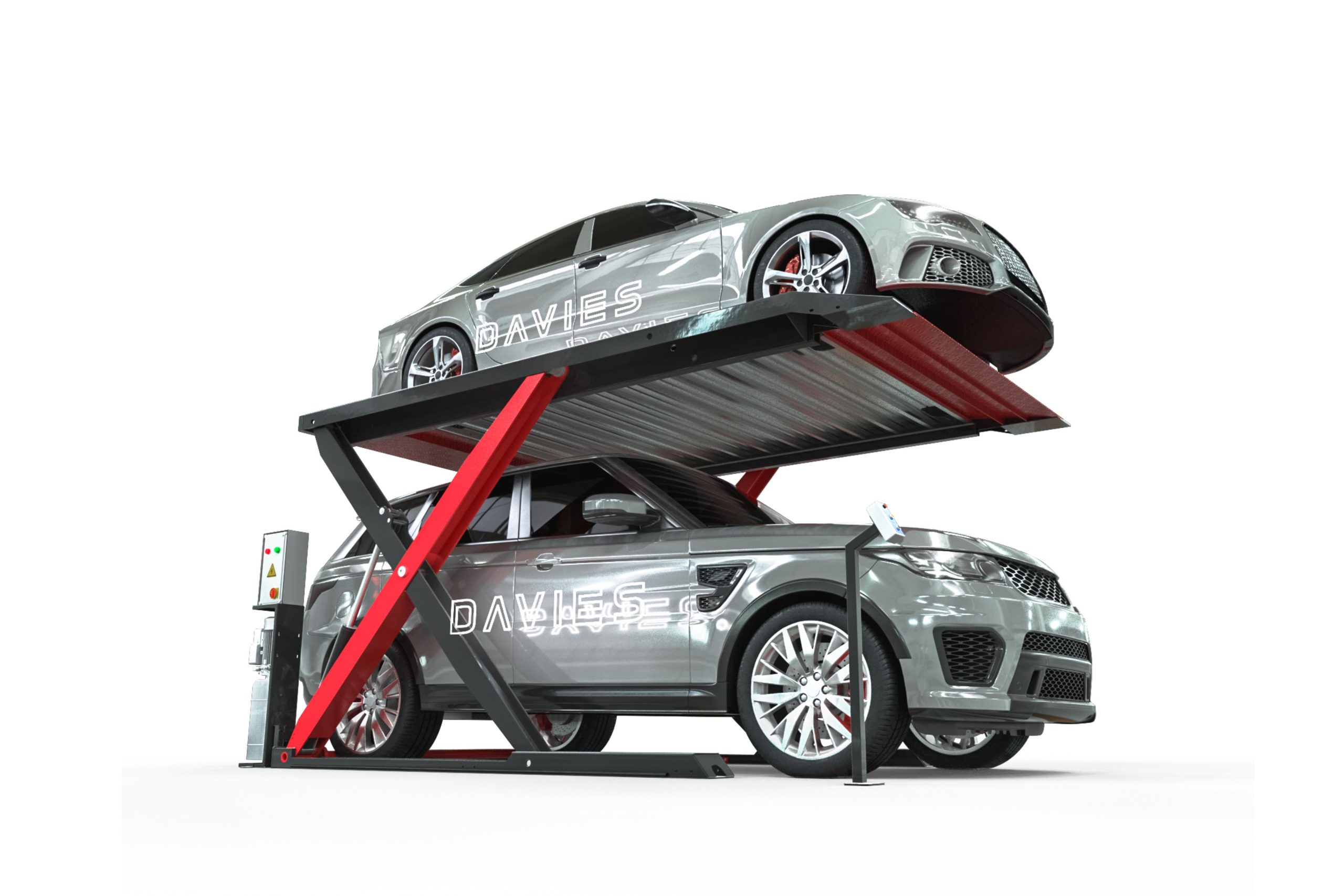

The Davies scissor-style car parking lift designed to increase parking capacity by stacking two vehicles vertically. It is suitable for sedans and small SUVs in residential and commercial environments where ceiling height allows.

Key Benefits

Creates two parking spaces within a single footprint
Scissor lift design provides stable vertical lifting
Compact structure compared to post-style stackers
Suitable for indoor and outdoor installation (with optional protection)
Simple two-level parking system with fast operation

Safety System

Anti-fall mechanical locks
Limit switches
Emergency stop button
Photoelectric sensor
Lock-down button
Key Switch

Features

Dual hydraulic cylinders
Approx. 1800 mm parking height
Laser-cut components throughout the structure
Safety key switch controller
Hydraulic overload protection
Anti-skid ramps and platforms
Smooth double powder-coated finish
Dotted runway plates for grip
Schneider electrical components
IP65-rated electrical components available for outdoor use

Suitable Applications

Private residential garages
Residential communities
Shopping centres
Automotive workshops
Car dealerships

Please contact us for a quote.

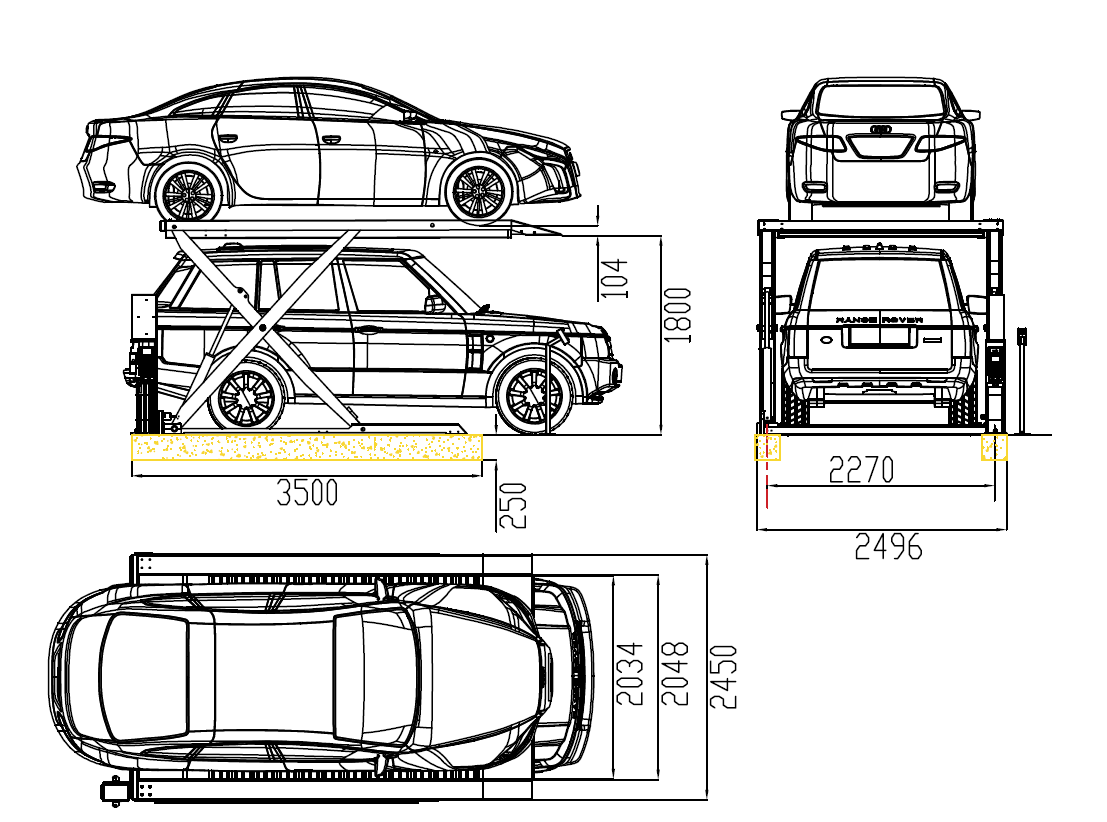

Model	DAPSCL
Lifitng Capacity	2000KG
Power Supply	240V/15A
Recommended Ceiling Height	3400mm
Max Lifting Height	1800mm
Min Height	104mm
Overall Length Including Ramps	4500mm
Internal Platform Width	2034mm
Overall Width	2496mm
Portable	No
Concrete Thickness Req.	150mm
Air Req.	No
In Ground Option	No

INCLUDES

DAPSCL
Control Post
240V 15A Plug Top

DOES NOT INCLUDE

32W Hydraulic oil

Warranty

For warranty purposes the intended use of this product is "Home use / Light commercial"
3 Years Warranty for intended use.
No warranty on consumable parts
Warranty is parts only

For more information see our warranty terms and conditions
